Motor Reliability is Critical to Avoiding Unplanned Downtime
When critical motors fail unexpectedly, so do the systems they drive. Production lines stop, fans stop blowing, and pumps stop pumping. Improving motor reliability is really about improving system reliability and keeping essential processes running.
To improve motor reliability and prevent unplanned downtime:
- Address mechanical fundamentals - proper lubrication, alignment, and vibration control
- Monitor operating conditions - temperature, humidity, and contamination levels
- Protect against electrical damage - especially shaft voltage from VFDs
- Implement proactive maintenance - condition monitoring and regular testing
- Use proper bearing protection - shaft grounding rings for VFD-driven motors

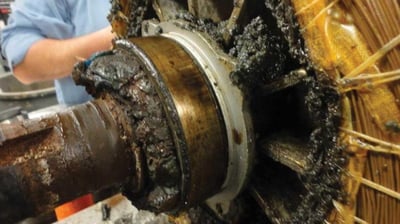

The statistics tell a clear story. Research shows that 51% of motor failures are bearing-related, with another 16% stemming from stator winding issues and 16% from external conditions. The risk is compounded by heat: The hotter bearings run, the faster their lubricant degrades.
Modern industrial facilities face a unique challenge. Variable Frequency Drives (VFDs) have become essential for energy efficiency and process control - About half of all electricity is used to power pumps, fans, and compressors, which can all save energy when run on drives. But VFDs introduce a significant reliability tradeoff. Their high-speed switching creates shaft voltage that can discharge through motor bearings, causing electrical discharge machining (EDM) that leads to premature failure.
The good news? Most motor failures are preventable. A well-designed predictive maintenance program can reduce unexpected stoppages by roughly 45%.
This blog post breaks down the specific failure modes that threaten motor reliability, explains how VFDs create new risks to motors and systems, and provides practical steps to protect your critical systems from unplanned downtime.
How to Improve Reliability by Mitigating Common Failure Modes
This section addresses the most common threats to electric motors, separating them into mechanical/environmental and electrical categories. By understanding these failure modes, maintenance teams can implement targeted strategies to prevent premature failure and avoid costly downtime.
Foundational Maintenance for Mechanical and Environmental Threats
Proper mechanical care and environmental control are the first lines of defense in any motor reliability program. Neglecting these fundamentals can lead to rapid degradation. Our goal is to keep pumps, fans, and conveyors operating efficiently and reliably, and that starts with meticulous maintenance.
- Lubrication: A proper lubrication program is critical, as both over- and under-lubrication significantly increase the probability of premature bearing failure. Following manufacturer recommendations for grease type, quantity, and frequency is essential.
- Alignment: Misalignment places undue stress on bearings and couplings, increasing vibration and heat. Even a slight misalignment can increase bearing wear by 30%. Regular checks using precision tools such as laser alignment systems can mitigate this risk.
- Vibration Analysis: Excessive vibration can indicate misalignment, imbalance, or worn bearings. Regular vibration monitoring can detect problems in their early stages. Facilities using ISO 10816-compliant thresholds report 52% fewer unplanned outages.
- Temperature Monitoring: Heat is a primary enemy of motor insulation; for every 18°F (10°C) rise in operating temperature, insulation life is halved. Ensure cooling systems are clear and functional, and use infrared thermography to identify hotspots.
- Environmental Control: Dust, dirt, and moisture can contaminate lubricants, impede cooling, and degrade insulation. In damp environments, insulation breakdown is responsible for nearly half of all motor failures. Keeping motors clean and protected from contaminants is crucial.
To learn more about improving the reliability of your motor systems, we encourage you to consult guides such as this one by the US Department of Energy.
The VFD Reliability Tradeoff: Efficiency vs. Bearing Damage
The variable frequency drive (VFD) is a transformative technology that improves system efficiency and offers precise process control. Modest reductions in equipment speed significantly reduce input power. A 20% reduction in speed can yield energy savings of around 50%.
However, VFDs introduce a significant reliability tradeoff. Their output contains a common-mode voltage, which causes a voltage buildup on the motor's shaft. This shaft voltage seeks the path of least resistance to ground, which is often through the motor's bearings.
When shaft voltage discharges by arcing through the bearings, it creates microscopic pits on the bearing surfaces, a process called electrical discharge machining (EDM). Over time, these pits accumulate, causing a frosted appearance and eventually leading to a picket-fence pattern of ridges known as "fluting." This damage causes increased friction, noise, and vibration, culminating in premature bearing failure.
This VFD-induced electrical damage is a silent killer of motor bearings. Understanding this "VFD reliability tradeoff" is crucial for any facility relying on these energy-efficient drives. For a deeper dive into this phenomenon, explore our guides to shaft voltage and bearing currents.
Protecting Bearings from VFD-Induced Electrical Damage
When voltage is present on a VFD-driven motor's shaft, it will seek the path of least resistance to ground. As mentioned, this path is often through the motor's bearings, leading to destructive EDM and premature failure. One reliable solution is to provide an alternative, low-resistance path for the voltage to safely discharge to ground, bypassing the bearings entirely.

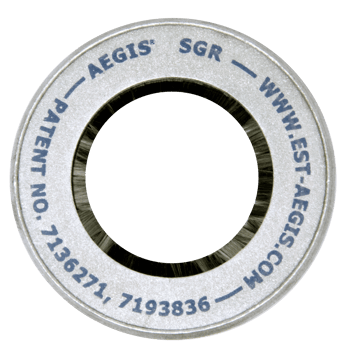

This is where shaft grounding comes into play. Shaft grounding devices, like our AEGIS® Shaft Grounding Rings, create a conductive path from the motor shaft to the motor frame. These rings feature conductive microfibers that contact the motor shaft, bleeding off shaft voltage before it can build up enough to arc through the bearings.
Electrical bearing protection for larger motors, over 100 HP (75 kW), requires more than just shaft grounding. Larger motors are at risk of high frequency circulating current (HFCC), along with shaft voltage discharge. We recommend installing an insulated bearing on the non-drive end of large motors, in conjunction with a shaft grounding device on the drive end. For more information on best practices and installation, see our AEGIS® Bearing Protection Handbook.
AEGIS® Shaft Grounding Rings are a critical component for preventing premature motor failure and ensuring long-term reliability in VFD-powered systems.
Building a Comprehensive Motor Reliability Program
A robust reliability program moves beyond reactive repairs and adopts a proactive, evidence-based mindset. It combines best practices in mechanical and electrical maintenance, risk-mitigating measures, and continuous monitoring to ensure critical systems stay online.
Integrating Proactive Maintenance and Condition Monitoring
A proactive maintenance strategy is about using data to anticipate failures before they happen. This allows maintenance to be scheduled on your terms, rather than in reaction to a catastrophic failure. Condition monitoring is the cornerstone of any effective predictive maintenance (PdM) program, which has been shown to reduce unexpected stoppages by roughly 45%.
Key monitoring aspects include:
- Vibration Analysis: Identifies issues like misalignment, imbalance, and bearing wear at their earliest stages.
- Temperature Monitoring: Infrared thermography is invaluable for detecting hotspots in motor enclosures, windings, and connections before severe damage occurs.
- Electrical Testing: Regular tests are critical for assessing the health of motor windings, connections, and even bearings. Examples include:
- Insulation Resistance Testing: Measures insulation integrity. Recommended every three to eight months, depending on the environment.
- Phase Resistance Balance Testing: A difference of more than 5% indicates potential winding issues.
- Terminal and Connection Inspections: Quarterly torque checks can reduce contact resistance and prevent arc faults.
- Current Signature Analysis: Can detect rotor bar and bearing problems early.
- Shaft Voltage Testing: To assess the risk of electrical bearing damage.
Accurate and consistent record-keeping is the backbone of a successful PdM program. Detailed maintenance records provide a context, allowing you to track trends, identify recurring issues, and optimize maintenance schedules.
Creating a Culture of Reliability
True reliability is a team effort. It requires moving beyond a reactive "fix-it-when-it-breaks" mentality to a proactive "prevent-it-from-breaking" approach. This involves establishing standardized procedures, investing in training, and performing root cause failure analysis (RCFA). When a system fails, the goal is to understand why it failed to prevent recurrence.
This analysis also informs repair-or-replace decisions. For small motors, replacement is usually cheaper. For larger units, motor repair is more economical.
Neglecting motor maintenance leads to increased unplanned downtime, higher repair costs, and reduced operational efficiency. By contrast, a proactive, reliability-centered approach helps avoid these pitfalls.
Here's a quick checklist for fostering a culture of reliability:
- Standardize Procedures: Document and enforce consistent maintenance protocols.
- Invest in Training: Equip your team with the skills for modern motor maintenance.
- Practice RCFA: Always investigate why a failure occurred.
- Use Technology: Make the most of condition monitoring and diagnostic tools.
- Maintain Records: Track all maintenance activities and motor health data.
- Communicate: Foster open communication between Maintenance, Operations, and Management.
The Final Layer of Protection for VFD-Driven Systems
For modern systems using VFDs, a complete reliability strategy must include a plan for electrical bearing protection. The energy savings and precise control offered by VFDs are undeniable, but the risk of electrical bearing damage is a constant concern that can lead to costly unplanned downtime. Our role is to reduce that risk.
As a leader in our field, Electro Static Technology provides proven solutions to mitigate this risk. Our AEGIS® Shaft Grounding Rings are specifically designed to provide a low-resistance path from the motor shaft to the motor frame, safely dissipating shaft voltage before it can discharge through the bearings and damage them.
AEGIS® Shaft Grounding Rings serve as one layer of protection within a broader reliability strategy, helping prevent this specific failure mode and improving overall system reliability.
We stand by the quality and effectiveness of our products, offering a 2-Year Extended Warranty for added peace of mind. To learn more about how our technology safeguards your critical equipment, we invite you to learn more about AEGIS® Shaft Grounding Ring technology.
AEGIS Rings also come with a 2-year extended warranty against bearing fluting damage. No other form of protection against VFD-caused bearing damage offers a warranty like this.
To learn more about AEGIS shaft grounding and best practices for electrical bearing protection - for motors and generators - sign up for a training. We offer monthly live training webinars, and we can also visit your facility to review your exact application.
